How Clogged Air Compressor Filters Increase Energy Costs

The Hidden Expense of Pressure Drops: How Clogged Filters Are Quietly Eating Your Electricity Budget

Most facility managers keep a close eye on their electricity bills, equipment maintenance schedules, and production costs. However, there is one hidden expense inside many compressed air systems that often goes unnoticed until it becomes a major problem: pressure drop.

Pressure drop does not usually create a dramatic failure. There is no sudden breakdown, loud warning, or immediate shutdown. Instead, it slowly forces your compressor to work harder, consume more energy, and operate less efficiently every hour your facility is running.

At Compressor Now, we believe that understanding the physics behind your compressed air system is the first step toward reducing waste, improving reliability, and lowering operating costs.

What Is Pressure Drop?

In a perfect compressed air system, the pressure produced by the compressor would be exactly the pressure delivered to your tools and equipment. If your compressor produces 100 PSI, your pneumatic tools would receive 100 PSI.

In reality, every component between the compressor and the point of use creates resistance. Valves, fittings, hoses, piping, dryers, regulators, and filters all contribute to pressure loss.

This loss is known as pressure drop.

Some pressure drop is normal. Every compressed air system has a certain amount of resistance. The problem begins when pressure drop increases beyond acceptable levels, especially when filters become restricted with dirt, oil, moisture, and other contaminants.

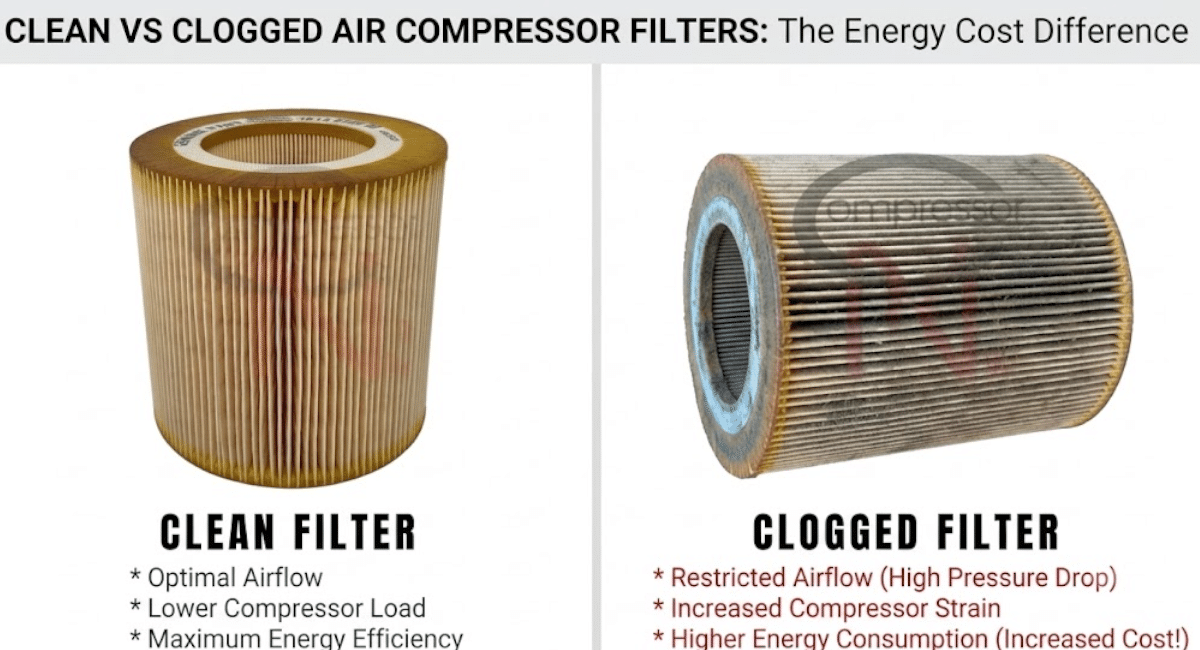

A clogged filter forces air to work harder to pass through the element. To maintain the pressure required by your equipment, the compressor must compensate by increasing its operating pressure.

The result is simple:

• The compressor runs harder.
• The motor consumes more electricity.
• The system produces more heat.
• Operating costs increase.

How Air Compressors and Filters Work Together

Air compressors are designed to provide a reliable supply of compressed air for industrial equipment, pneumatic tools, automation systems, and production processes. Whether you are running impact wrenches, grinders, assembly equipment, or manufacturing machinery, your tools depend on consistent air pressure and clean air quality.

Filters are a critical part of that system. Their job is to remove contaminants such as:

• Oil aerosols
• Dirt and dust particles
• Rust and pipe scale
• Moisture droplets

Clean air protects downstream equipment and improves performance. However, every filter also creates resistance. As the filter collects contaminants, the resistance increases, and the pressure drop grows.

This means filters have a balancing act:

They need to remove contaminants without restricting airflow so much that they waste energy.

The “1% Rule” That Can Quietly Break the Bank

The math behind pressure drop is eye-opening. Many facilities ignore a few PSI because it seems insignificant. However, compressed air systems operate continuously, and small inefficiencies become expensive over thousands of operating hours.

A common industry guideline is:

For every 2 PSI of additional pressure, compressor energy consumption can increase by approximately 1%.

That means a filter causing a 10 PSI pressure drop could increase energy usage by roughly 5%.

The Real-World Cost of Ignoring Filters

Consider a typical industrial compressor:

• 100 HP compressor
• 4,000 operating hours per year
• $0.12 per kWh electricity rate

If a clogged filter creates a 10 PSI pressure drop, the additional energy usage could add thousands of dollars per year in operating costs.

That wasted energy may cost more than the filter element itself many times over.

A replacement filter that costs a few hundred dollars can prevent unnecessary energy consumption that continues every day the compressor operates.

The Ripple Effect: Pressure Drop Causes More Than Higher Bills

The electricity bill is only one part of the problem. Operating a compressed air system with excessive pressure drop creates additional issues throughout the facility.

Reduced Compressor Life

When a compressor works harder than necessary, additional stress is placed on motors, bearings, compression elements, and other internal components.

Higher operating pressures also create additional heat. Excessive heat accelerates wear, breaks down lubricants faster, and can shorten service intervals.

Increased Air Leakage

Leaks are one of the biggest sources of wasted compressed air. As system pressure increases, existing leaks become worse because more air is forced through small openings.

A compressed air leak at 110 PSI will waste more energy than the same leak operating at 90 PSI.

Reducing unnecessary pressure helps reduce the impact of leakage throughout your system.

Poor Tool and Equipment Performance

Pneumatic tools require the correct pressure and airflow to operate properly. If pressure fluctuates because of excessive pressure drop, tools may lose torque, slow down, or fail to perform consistently.

In production environments, this can lead to:

• Reduced productivity
• Incomplete processes
• Quality issues
• Unexpected downtime

The Role of Air Piping in Pressure Loss

Filters are not the only source of pressure drop. Your air piping system can also contribute significantly to efficiency problems.

Small diameter piping, excessive bends, poor layouts, and undersized fittings restrict airflow and increase resistance.

A properly designed compressed air network should:

• Use appropriately sized piping
• Minimize unnecessary bends
• Reduce restrictions between the compressor and equipment
• Provide stable pressure at points of use

Even a clean filter cannot fully solve pressure problems caused by poor piping design.

How to Fight Back Against Pressure Drop

The solution is not simply replacing filters on a calendar schedule. A smarter approach is monitoring system performance and responding when restrictions appear.

Install Differential Pressure Gauges

Differential pressure gauges measure the pressure before and after a filter. The difference between those two readings tells you how restricted the element has become.

When the pressure difference becomes too high, the filter needs attention.

Do Not Wait for a Maintenance Date

Environmental conditions can change quickly. A dusty warehouse, nearby construction, seasonal conditions, or increased production can load filters faster than expected.

A filter that normally lasts six months may require replacement sooner depending on operating conditions.

Use Quality Filter Elements

Not all filter elements perform the same. Low-quality replacements may have higher initial pressure drops even when they are brand new.

A properly engineered filter provides contaminant removal while maintaining efficient airflow.

Summary: Small Maintenance Decisions Create Big Savings

Pressure drop is one of the easiest compressed air inefficiencies to overlook because it happens quietly. However, clogged filters, restricted piping, and excessive resistance can force your compressor to consume unnecessary energy every day.

Maintaining clean filters, monitoring pressure differences, inspecting piping, and using quality replacement elements can dramatically improve system efficiency.

Your compressed air system is one of the most important utilities in your facility. Keeping it efficient protects your equipment, reduces operating costs, and helps prevent unexpected downtime.

Need help selecting the right compressor filters, replacement elements, or improving your compressed air system efficiency? Contact Compressor Now today and our team can help you find the right solution for your application.
