The Anatomy of an Air Lead: What exactly happens inside your compressor during a cycle?

We often treat air compressors like the “black boxes” of the industrial world. You flip a switch, you hear a roar, and suddenly you have the power to run pneumatic tools, spray paint, or drive assembly lines.  Compressor Now, we know that understanding what’s happening under the hood is the key to better maintenance and a longer machine lifespan.

Ever wondered exactly how that ambient air becomes high-pressure energy? Let’s pull back the curtain and look at the “anatomy” of a standard compression cycle.

1. The Intake: Taking a Deep Breath

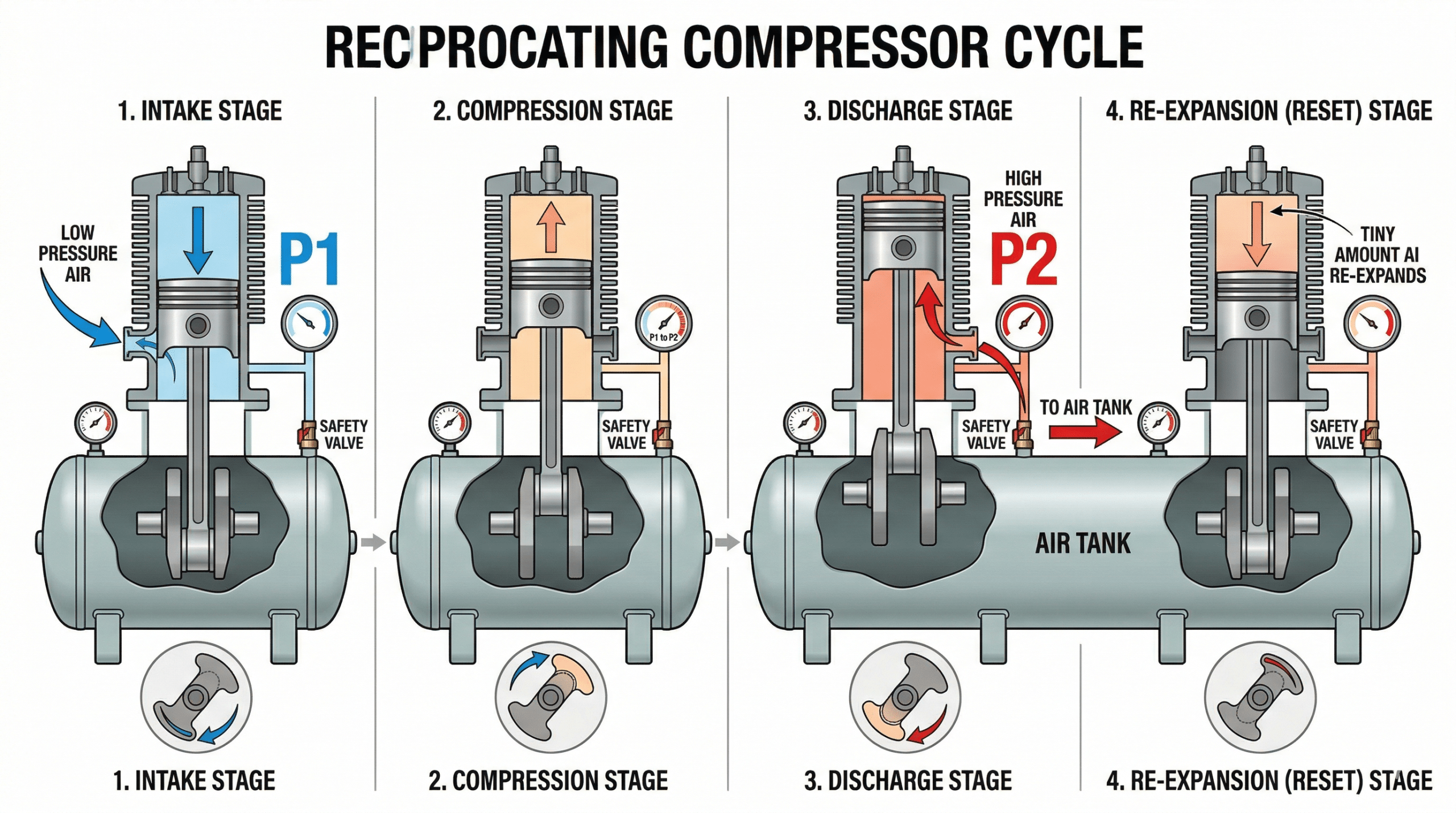

Every cycle starts with the intake stroke. As the piston moves down (in a reciprocating compressor) or the rotors begin to turn (in a rotary screw), a vacuum is created.

• The Filter’s Job: Atmospheric air is pulled through an intake filter. This is your compressor’s first line of defense against dust and debris.
• The Inlet Valve: This valve opens to allow the air into the cylinder or screw chamber. Think of it as the “lungs” of the operation.

2. The Squeeze: Realizing the Pressure

Once the chamber is full, the inlet valve closes. Now, the magic happens. The volume of the chamber decreases, forcing the air molecules closer together.

• In a Reciprocating Compressor: The piston moves upward, physically squashing the air into a tiny fraction of its original space.
• In a Rotary Screw Compressor: Two counter-rotating screws (rotors) trap the air and move it along the length of the screws. As the “pockets” between the threads get smaller toward the end of the rotors, the air is compressed.

Pro Tip: This is where things get hot. When you compress air, you also concentrate heat. This is known as the heat of compression, and managing it is vital for your system’s health.

3. The Discharge: Moving On Up

Once the air reaches the desired pressure, the discharge valve (or outlet) opens. The air is pushed out of the compression element and toward the rest of the system.

But it’s not ready for your tools just yet. At this stage, the air is hot, oily (in lubricated models), and full of water vapor.

4. The Treatment: Cleaning Up the Act

Before the air hits your pipes, it usually goes through a few “cleanup” stations:

1. Aftercooler: A heat exchanger that drops the air temperature.
2. Separator: Removes the bulk of the liquid water and oil.
3. Storage Tank (Receiver): Acts as a buffer to provide steady pressure and allows the air to cool further.

Why Does This Matter?

Understanding this cycle helps you spot trouble before it starts.

• Hearing a whistle at the intake? Your filter might be clogged.
• Excessive heat during the squeeze? You might have a lubrication or cooling issue.
• Water in your lines? Your aftercooler or drains aren’t doing their job during the discharge phase.

Keep Your System Pulsing

A compressor is a high-performance athlete. It needs clean air, proper lubrication, and regular checkups to keep that “anatomy” functioning at peak efficiency.
